120KW CCS1 CCS 2 Fast Charger For Electric Vehicle

Ask Lasest Price
Brand Name :	ARK or OEM
Model Number :	EF160CJ142
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	200 sets per month
Delivery Time :	45 days

Add to Cart

Product Details
Company Profile

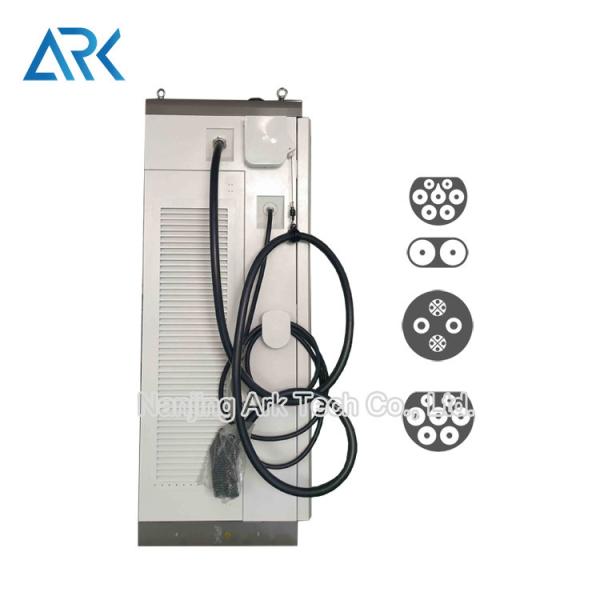

120KW CCS1 CCS 2 Fast Charger For Electric Vehicle

Ark Modular Charging System 120KW CCS 1 / 2 and CHAdeMO Floor - mounted Fast EV DC Charger Custom Paint and Branding

Product Introduction

ARK EF160 Fast Chargers from 60 kW to 120 kW are Quick Charging stations able to charge all EVs with CHAdeMO, CCS and AC Type-2 (fast) charging compliance.

Product Parameters

System
Housing material	Metal enclosure
Dimension (H x W x D)	1900 x 700 x 700mm
Installation method	Ground mount
Cable routing	Bottom inlet, top outlet wiring
Weight	355kgs
Charging standard	CCS combo-1/2, CHAdeMO & AC IEC 61851
Charging outlet	CHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2
Outlet number	3
Input
Input voltage	400Vac +/-10%, 3-phase
Input frequency	50Hz/60Hz
Power factor	0.99
Output
Rated output power	CCS: 60kW, CHAdeMO: 60kW, AC: 22kW	CCS: 120kW, CHAdeMO: 60kW, AC:22kW
Measuring accuracy	Level 0.5
Output voltage range	150 – 750V DC constant output @ above 300V, 400V AC
Output current range	0 - 200A DC, 32A AC	0 - 400A DC, 32A AC
Efficiency	> 94% at rated output
General
Charging type	Mode 4
User Interface	RFID, 7” touch screen, Emergency button
Ethernet	10/100 BaseTX (TCP-IP)
Cellular	LTE modem, GPRS/3G/4G
Communication	CAN, PLC, PWM, OCPP 1.6 JSON
Application place	Indoor/Outdoor
Working temperature	-20 °C – +70 °C
Working humidity	5% – 95% non-condensation
Altitude	< 2000m
Protection grade	IP54
Cooling	Fan cooling
Security design	Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

120KW CCS1 CCS 2 Fast Charger For Electric Vehicle

Features

Fast secured and proven charging process

After user identification, by simply choosing the charging standard compatible to the vehicle and coupling the charger’s output plug to the EV, the charging process will be fast secured and proven.

Easy charging

The battery charging status is displayed, and the charging cycle finishes by itself or can be terminated by a user command.

Different output options available

Different output options are available like CCS, CHAdeMO or AC, with different combinations like CCS-CHA-AC.

Company Details

ARK Tech is a manufacturer specialized in EV charging products. Apart from the factory, our company has other departments of design, R&D and customer service. Our main products include AC charging stations and DC charging stations. To better fit different market preferences and needs, we offer not only standard products but also customized ones upon requests.

FAQ

Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.

Q: How about the quality and warranty about the charger?

All of our chargers are CE certificated. We supply 12 months warranty for the charger, what'more, we supply whole life techinical support.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
